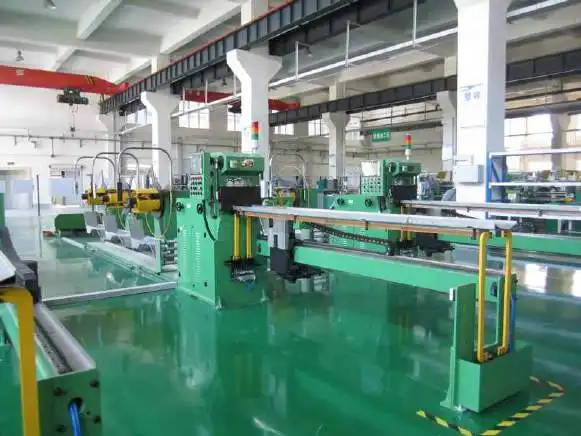

Transformer Production Line
Transformer Production Line
3D Wound Core Manufacture Machine / A morphous Alloy Core Manufacture Machine / Silicon Steel Cutting Machine

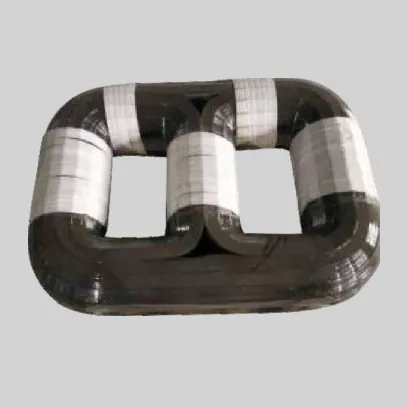

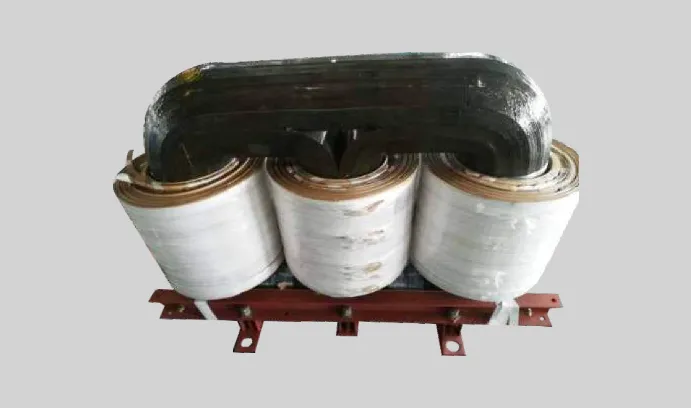

Three-dimensional Triangle Wound Core Structure and Advantages
Optimization of magnetic circuit :
1.There is no joint between the three dimensional volume of the core layer, uniform distribution of the magnetic circuit. There is no obvious high resistance area and no distortion of the magnetic flux density of the joint.
2.The direction of the magnetic flux is completely consistent with the orientation of the silicon steel sheet.
3.The length of the three-phase magnetic circuit is exactly the same, and the length of the three-phase magnetic circuit is the shortest.
4.The three-phase magnetic circuit is completely symmetrical, and the three air current is completely balanced.
Low loss, energy savings remarkable:
1. Lower Core Loss: Aligned magnetization and uniform flux distribution reduce iron loss by 10-20%.
2.Material Savings: Special 3D structure cuts yoke material by 25%, with corner core weight only 6%.
3.Improved Magnetic Performance: High-temperature annealing enhances silicon steel’s magnetic properties beyond factory specifications.
4.Superior No-Load Performance: No-load loss is 25-35% lower than national standards, and max load current can be cut by 92%.
Low noise:
The source of noise caused by transformer body vibration is:
1.Magnetic expansion of the silicon steel sheet causes core vibration, producing noise.
2.Electromagnetic attraction at joints and laminations due to leakage causes core vibration and noise.
3.Excessively high working magnetic density near saturation, along with large leakage, results in noise.
The three-dimensional wound core, made from continuously rolled silicon steel without seams, avoids the noise of laminated cores. Its symmetrical three-phase magnetic circuit and well-designed magnetic density significantly reduce noise.
High overload ability:
1.The product itself has very low heat: the winding core transformer’s no-load loss, no-load current are both very small, so the product itself is very low heated.
2.Three-phase coil is like three chimney delta shaped, so an airway chimney is formed in the coil. The core yoke has a temperature difference of 30-40℃, which causes strong cross-ventilation. Cold air goes up to the warm side, the heat is radiated from the inner bevel of upper yoke.
Compact structure, small location :
The special-designed three-dimensional core makes compact structure products reasonable layout, the transformer body occupied is 10-15% less than traditional products, body height 10-20%. If installed in the substation box, the substation box can deduce nearly 1/4.
Anti-theft :
The copper coil is wounded onto the iron. The copper coil is hard to taken out without big professional equipment
| Rated capacity（KAV） | Voltage combination and tapping range | Connection group symbol | No-load loss | No-load current | load loss |
short circuit impedance% | |||
High voltage KV | High voltage tapping range% |
Low voltage KV | S13 | S11 | |||||
| 30 | 6 6.3 10 10.5 11 | ±5 | 0.4 | Dyn11 Yzn11 Yyn0 | 80 | 100 | 0.30 | 630/600 | 4.0 |
| 50 | 100 | 130 | 0.24 | 910/870 | |||||
| 63 | 110 | 150 | 0.23 | 1090/1040 | |||||
| 80 | 130 | 180 | 0.22 | 1310/1250 | |||||
| 100 | 150 | 200 | 0.21 | 1580/1500 | |||||
| 125 | 170 | 240 | 0.20 | 1890/1800 | |||||
| 160 | 200 | 280 | 0.19 | 2310/2200 | |||||
| 200 | 240 | 340 | 0.18 | 2730/2600 | |||||
| 250 | 290 | 400 | 0.17 | 3200/3050 | |||||
| 315 | 340 | 480 | 0.16 | 3830/3650 | |||||
| 400 | 410 | 570 | 0.16 | 4520/4300 | |||||
| 500 | 480 | 680 | 0.16 | 5410/5150 | |||||
| 630 | Dyn11 Yyn0 | 570 | 810 | 0.15 | 6200 | 4.5 | |||
| 800 | 700 | 980 | 0.15 | 7500 | |||||
| 1000 | 830 | 1150 | 0.14 | 10300 | |||||
| 1250 | 970 | 1360 | 0.13 | 12000 | |||||
| 16000 | 1170 | 1640 | 0.12 | 14500 | |||||
Note: For transformers with rated capacity of 500KVA and below, the load loss values above the slash in the table are applicable to Dyn11 and Yzn11 connection groups, and the load loss values below the slash are applicable to Yyn0 connection groups.Three - dimensional Transformer Wound Core Cutting Machine

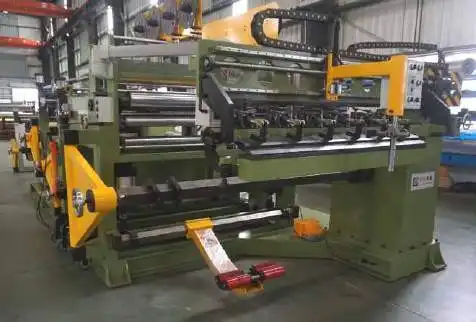

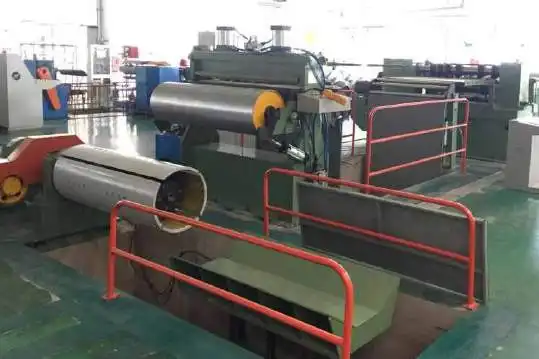

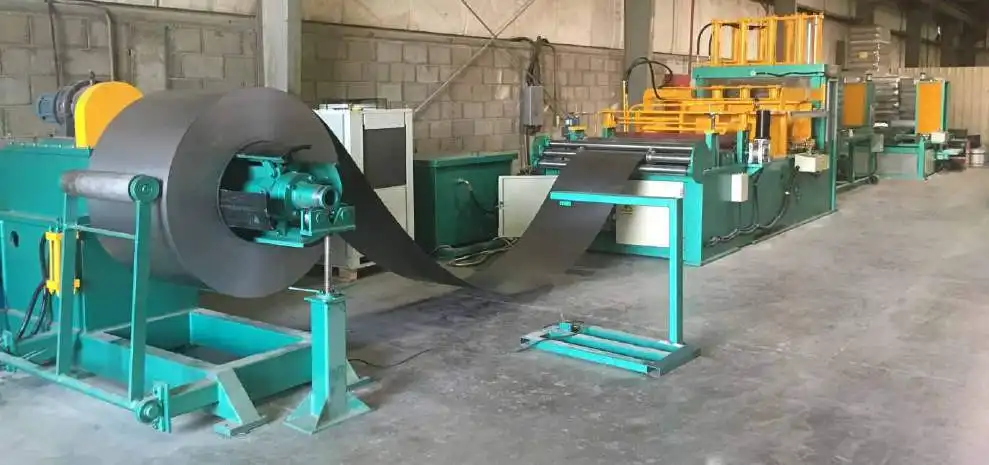

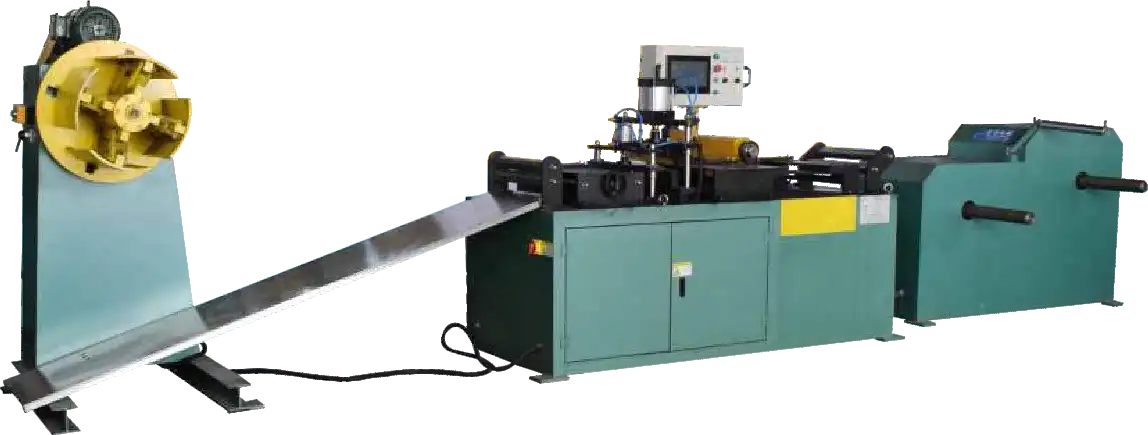

Features :
1. Apply to silicon steel strip cutting for the three-dimensional triangle wound core
2. Cutting type: curve/ straight
3. Adopt servo motor, PLC control system and touch screen.
4. It has functions like: automatic resetting, automatic adjusting-tool, automatic shutdown, strip parameter setting and real-time display.
5. It is equipped with a variable frequency feeder, material’s position photoelectric detection, no need of storage pit, synchronous operation of feeding speed and cutting speed.
6. It is equipped with a torque receiver. It makes the constant tension of torque operate with the cutting machine synchronously. Material receiving neatly and closely.
7. The machine adopts high precision ball screw, and precision guide to ensure smooth operation, low noise, and long lifetime.
8. Hob uses high quality alloy steel, fast and easy to equip the cutter. It is available for different thickness material.
Technical Parameters:
| Code | SHKL-400 |
| Cutting type | straight / curve |
| Max feeding width | 400MM |
| Cutting speed | 0-60M/min |
| Cutting method | cut one into two strip |
| Material utilization | 99% |
| Cutting accuracy | ±0.3MM |
| Cutting burr | ≤0.03MM |
| Speed adjusting way | stepless speed adjust |

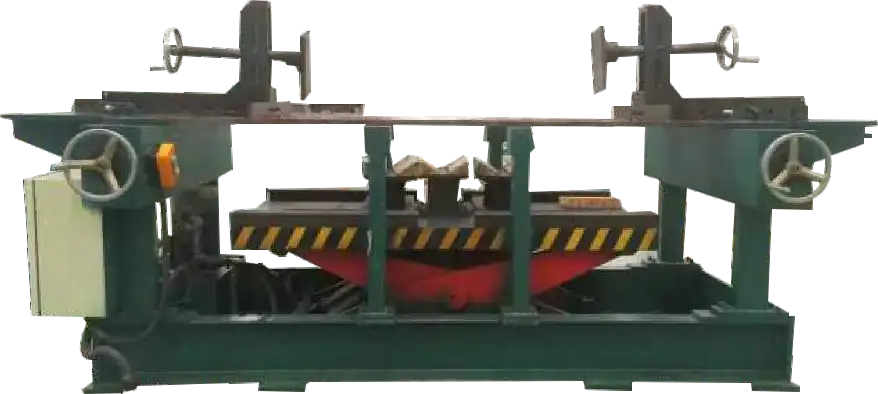

Automatic Three-dimensional Wound Core Winding Machine
Features :
1. Apply to closed type wound core
2. Function: the machine could use for flat single phase, flat three-phase and threedimensional wound core.
3. Widely use, it could meet a variety of cross section
4. Adopt servo motor, PLC control system and touch screen.
5. It has functions like: automatic resetting, automatic shutdown, strip parameter setting and real-time display.
6. It has manual and automatic pressure regulating device, easy to operate.
7. The wire guided machine adopts high precision ball screw, and precision guide to ensure smooth operation, low noise, and long lifetime.
Technical Parameters:
| Code | SHJR-1200 | |
| Maximum core outer diameter | 300MM | |
| Maximum gyration diameter | Add clamping roller | R600MM |
| No clamping roller | R800MM | |
| Core winding speed | 0-60r/min | |
| Total Power | 7.5KW | |
| Speed adjusting way | Frequency conversion stepless speed adjust | |
| Control system | PLC, Touch screen | |
R-type Wound Core Automatic Winding Machine
Features :
1. Apply to closed type wound core.
2. Function: the machine could use for flat single phase, flat three-phase and threedimensional wound core.
3. Widely use, it could meet a variety of cross section.
4. Adopt servo motor, PLC control system and touch screen.
5. It has functions like: automatic resetting, automatic shutdown, strip parameter setting and real-time display.
6. It has manual and automatic pressure regulating device, easy to operate.
7. The wire guided machine adopts high precision ball screw, and precision guide to ensure smooth operation, low noise, and long lifetime.
Technical Parameters:
| Code | SHPMJR- | |
| Maximum core outer diameter | 300MM | |
| Maximum gyration diameter | Add clamping roller | R600MM |
| No clamping roller | R800MM | |
| Core winding speed | 0-45r/min | |
| Total Power | 9.5KW | |
| Speed adjusting way | Frequency conversion stepless speed adjust | |
| Control system | PLC, Touch screen | |

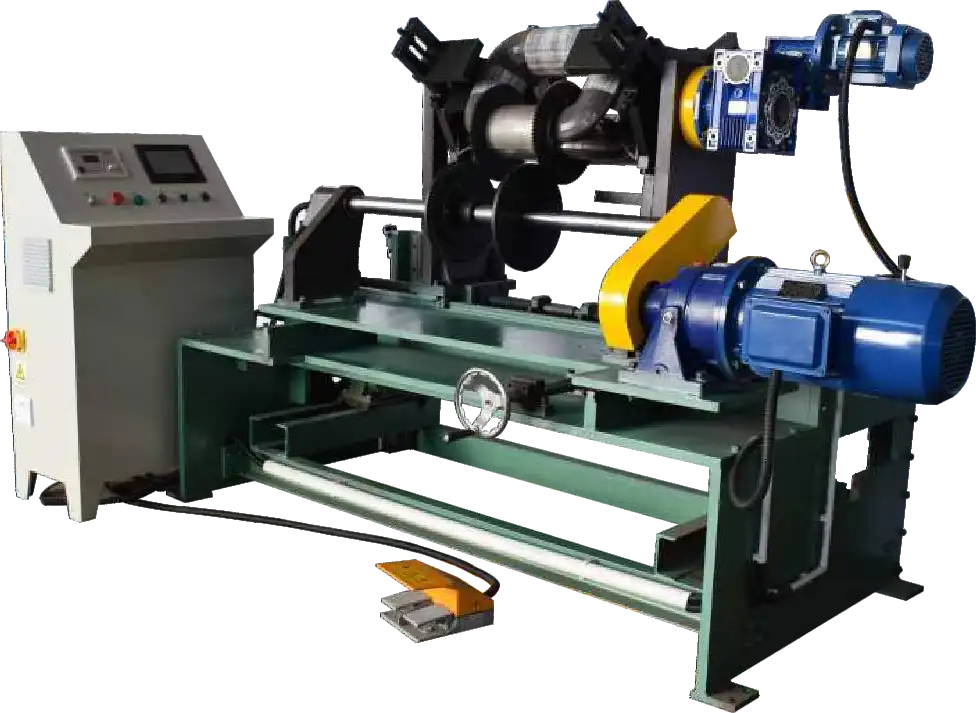

Three-dimensional Wound Core Coil Winding Machine (Big)
Features :
1. Dedicated for three-dimensional triangle wound core winding machine
2. Positioning mode: inner positioning, running smoothly, low noise, safe and reliable
3. The machine adopts electric lifting mode to adjust the core position, easy and fast
4. PLC control system, touch screen, encoder counting, automatic shutdown, memory and learning function
5. Be equipped with a inner top device, convenient and efficiency to install the core.
Technical Parameters:
| Code | SHRX-1 |
| Suitable transformer capacity | 30~1250kVA |
| Winding method | Horizontal type |
| Up and down distance | 200MM |
| Front and back max distance | 250MM |
| Drive gear revolving speed | 0-300r/min |
| Control system | PLC, Touch screen |
Three-dimensional Wound Core Coil Winding Machine (Small)
Features :
1. Dedicated for three-dimensional triangle wound core winding machine
2. Positioning mode: inner positioning, running smoothly, low noise, safe and reliable
3. PLC control system, touch screen, encoder counting, automatic shutdown, memory and learning function
4. Be equipped with a inner top device, convenient and efficiency to install the core.
Technical Parameters:
| Code | SHRX-2 |
| Suitable transformer capacity | 30-630KVA |
| Winding method | Horizontal type |
| Up and down distance | 500MM |
| Front and back max distance | 250MM |
| Drive gear revolving speed | 0-300r/min |
| Control system | PLC, Touch screen |

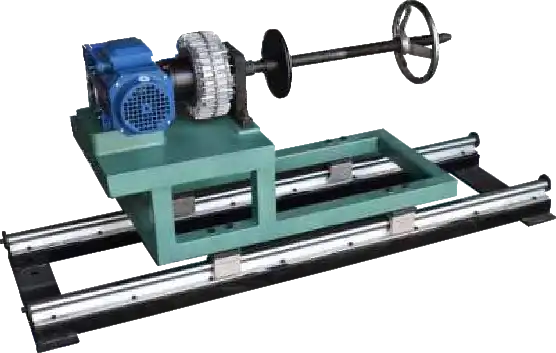

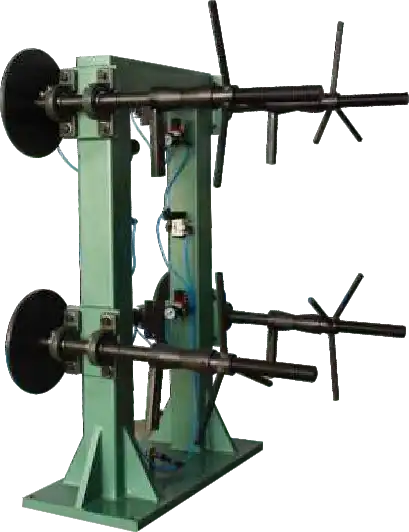

Tension Wire Pay Off Stand
HV Tension Wire Pay Off Stand
1. Adopt magnetic powder clutch, suitable for coil winding. It has constant tension.
2. The machine has two functions: uncoil and taking up.
3. Easy to operate.
| Code | SHZL-50N |
| Code | SHZL-100N |
| Max Load capacity | 100kg |
| Tray height | ≤400MM |
| Tray diameter | ≤500MM |
| Moving length | ≤800MM |
LV Tension Wire Pay Off Stand
1. Apply to LV coil winding.
2. Adopt pneumatic brake, tension could be adjusted according to air pressure.
| Code | SHZL-4 |
| Max Load capacity | 200kg |
| Tray height | ≤400MM |
| Tray diameter | ≤600MM |

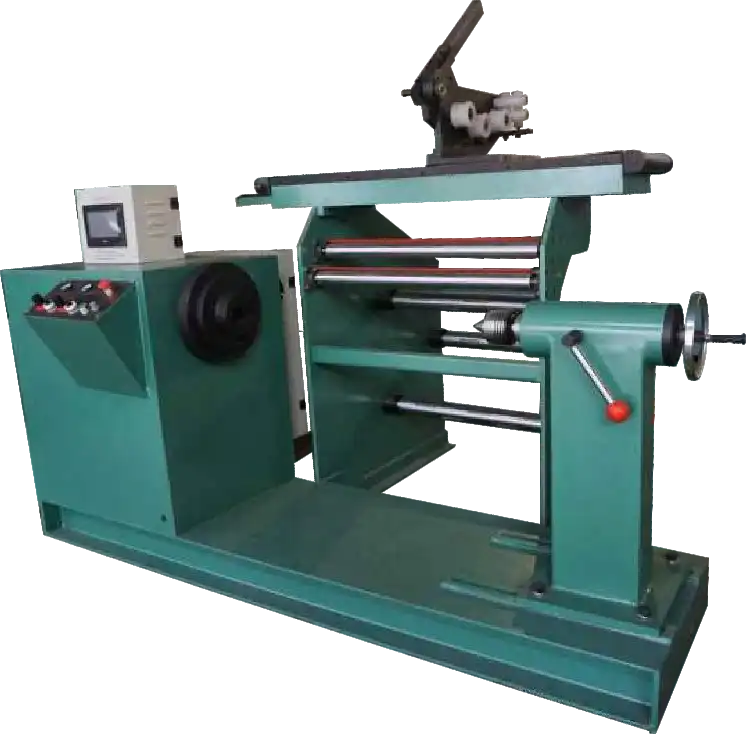

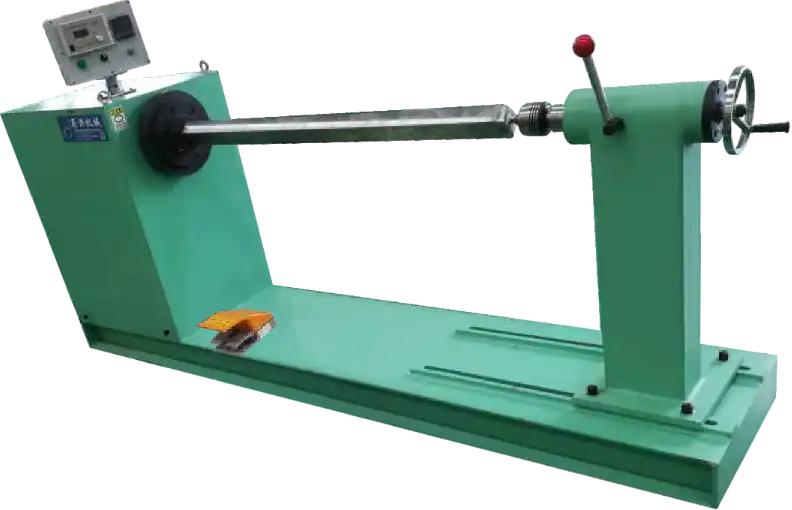

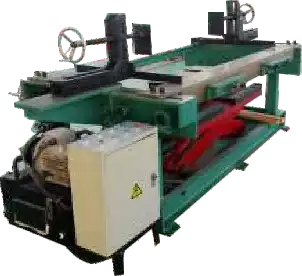

Horizontal Coil Winding Machine
Application :
This equipment is used for coil winding of transformer and reactor
Features :
1.Winding uses frequency conversion stepless speed adjusting, starting and braking smoothly
2.Adopting PLC and touch screen control, it could can preset number of winding. Max presetting number is 20.
3.Adopting encoder counting, touch screen display, it could remember in power off and has exact counting function in positive and reverse winding.
Technical Parameters:
| Code | SH-0.5T | SH-1T | SH-2T | SH-3T | SH-5T | SH-10T |
| Max. Loading | 0.5T | 1T | 2T | 3T | 5T | 10T |
| Main axis rotating speed | 0-240r/min | 0-150r/min | 0-90r/min | 0-60r/min | 0-20r/min | 0-10r/min |
| Speed adjusting method | Stepless speed adjust | |||||
| Main axis center height | 850mm | 850mm | 1000mm | 1100mm | 1300mm | 1400mm |
| Max. distance between main axis and end seat | 1200mm | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm |
| End seat moving stroke | 0-600m | 0-750m | 0-1000m | 0-1200m | 0-1500m | 0-1500m |
| Main axis power | 3kw | 4kw | 5.5kw | 7.5kw | 11kw | 15kw |
Automatic Cabling Coil Winding Machine
Application :
This equipment is used for amorphous alloy transformer HV coil winding and the same art work transformer coil winding.
Features :
1.Apply to round , oval , rectangle shape coil winding
2.Adopting PLC control , touch screen human – machine interface
3.Automatic cabling device is servo motor driving, precise ball screw and line guide as direction guide
4.Wire supplying use cylinder buffering structure, oval and rectangle coil winding problem can be solved effectively.
Equipment Composition:
1. Main machine
2. Automatic cabling device
3. Interlayer insulation paper device
4. Wire supplying race
5. Control system
Technical Parameters:
| Code | SH-600 | SH-800 | SH-1000 | |
| Coil height | ≤600mm | ≤800mm | ≤1000mm | |
| Coil outer diameter | 80-500mm | 80-600mm | 80-800mm | |
| Main axis rotating speed | 0-375r/min | 0-220r/min | 0-220r/min | |
| Speed adjusting method | Stepless speed adjust | |||
| Working torque | ≤300.M | |||
| Main axis center height | 850mm | |||
| Main axis loading | ≤200kg | ≤300kg | ≤500kg | |
| Guiding wire specification | Round wire：φ0.3-φ3mm | Flat wire：≤3*12mm | ||
| Wire cabling precision | 0.01mm | |||
| Main axis size | 50*50*800mm(90*50*800mm) | 50*50*1000mm(90*50*1000mm) | 50*50*1200mm (90*50*1200mm) | |
Automatic Cabling Coil Winding Machine
Application :
This equipment is used for amorphous alloy transformer HV coil winding and the same art work transformer coil winding.
Features :
1.Apply to round , oval , rectangle shape coil winding
2.Adopting PLC control , touch screen human – machine interface
3.Automatic cabling device is servo motor driving, precise ball screw and line guide as direction guide
4.Wire supplying use cylinder buffering structure, oval and rectangle coil winding problem can be solved effectively.
Equipment Composition:
1. Main machine
2. Automatic cabling device
3. Interlayer insulation paper device
4. Wire supplying race
5. Control system
Technical Parameters:
| Code | SH-600 | SH-800 | SH-1000 | |
| Coil height | ≤600mm | ≤800mm | ≤1000mm | |
| Coil outer diameter | 80-500mm | 80-600mm | 80-800mm | |
| Main axis rotating speed | 0-375r/min | 0-220r/min | 0-220r/min | |
| Speed adjusting method | Stepless speed adjust | |||
| Working torque | ≤300.M | |||
| Main axis center height | 850mm | |||
| Main axis loading | ≤200kg | ≤300kg | ≤500kg | |
| Guiding wire specification | Round wire：φ0.3-φ3mm | Flat wire：≤3*12mm | ||
| Wire cabling precision | 0.01mm | |||
| Main axis size | 50*50*800mm(90*50*800mm) | 50*50*1000mm(90*50*1000mm) | 50*50*1200mm (90*50*1200mm) | |
Foil Winding Machine
Application :
This equipment is mainly used in all kinds of foil winding in transformer and reactor. welding method have ti welding and cold pressure welding.
Features :
1. Adopting motor initiative supplying tension advanced method , stable tension , there is stable tension in foil winding, stopping and foil returning . It can avoid loosen situation when the tension lost in winding.
2.Winding speed reducer is turbine shaft reducer , it can keep main shaft auto – locked whenever power on or power off status.
3.Correction system using photoelectric analog sensors , it is not meeting with foil edge , both thick and thin foil are accepted .
4.Foil tension, layer insulation tension, coil parameters , winding status and other data , all of them can be set and showed on screen, easy for operating, accurately and intuitively.
5.Equipment is controlled by PLC and touch screen, less fault of whole machine, no friction noisy, stable working, high working efficiency
Equipment Composition:
1. Main machine
2. Foil belt decoiling device
3. Foil feeding device
4. Layer decoiling device
5. Automatic welding device
6. Foil burr remove device
7. Winding pressing roller device
8. Foil material clean device
9. Foil belt auto- correction device
10. Foil belt shearing machine
11. End insulation device
12.TIG auto- correction device
13. TIG machine cold water box
14.Electric control system
Technical Parameters:
| Code | SH-600 | SH-800 | SH-1100 | SH-1400 |
| Coil outer diameter | 150-750mm | 150-850mm | 200-1000mm | 200-1000mm |
| Foil width | 100-600mm | 150-800mm | 200-1100mm | 300-1400mm |
| Foil layers | Single or double | |||
| Foil thickness | Cu:0.3-2.5mm Al: 0.5-3.0mm | |||
| Winding speed | 0-30r/min | 0-30r/min | 0-20r/min | 0-20r/min |
| Max tension of foil | 6000N | 8000N | 10000N | 14000N |
| Welding speed | 0-0.5 m/min | |||
| Correction precision | ±0.5mm | |||
| Welding method | TIG or cold pressure welding | |||

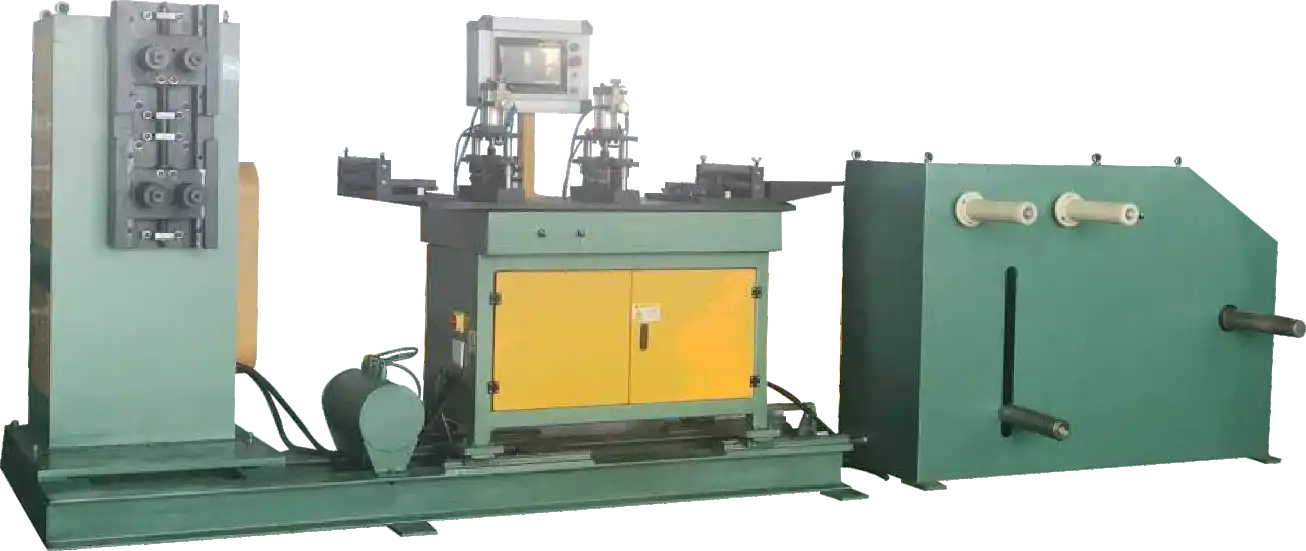

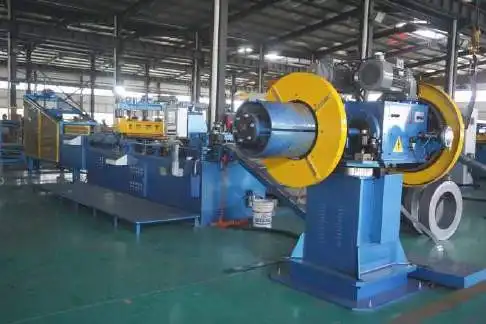

Silicon Plate CNC Slitting Line
Application :
This equipment is dedicated machine for silicon plate coil cutting to length. It is suitable for silicon plate coil slitting in transformer, motor, current transformer, etc.
Features :
1.All line adopts electric, hydraulic, pneumatic control. It is easy to operate and has high production efficiency.
2.Adopting PLC controller. The speed of the whole line is synchronous and the machine runs stably.
3.Adopting high rigidity and high precision slitting machine and winding machine to assure the slitting quality.
4.Uncoiling, slitting and winding speed matching automatically. all line works automatically
Equipment Composition:
1. Decoiler
2. Decoiling buffering rack
3. Slitting guide rack
4.Rolling shearing machine
5. Buffering device
6. Automatic roll up and swing lever
7. Tension table
8. Recoiler
Technical Parameters:
| Code | SH-1000 | SH-1250 |
| Material roll inner | 500mm | 500mm |
| Material roll width | 1000mm | 1250mm |
| Material roll weight | 5T | 8T |
| Material thickness | 0.20-0.5mm | 0.20-0.5mm |
| Slitting width | 40-1000mm | 40-1250mm |
| Slitting speed | 0-60m/min; 0-90m/min; 0-150m/min; | |
| Slitting width error | ±0.1mm | ±0.1mm |
| Slitting burr | ≤0.02mm | ≤0.02mm |
| Max. Slitting strips | 10 | 12 |
| Straightness deviation | ≤0.2mm/m | ≤0.2mm/m |
| Installing power | 35kw/55kw/85kw | 45kw/65kw/100kw |
Silicon Plate Cnc Cut To Length Line
Application :
This equipment is dedicated machine for transformer steel core manufacture.
Features :
1.Adopting imported controller and AC servo control system.
2.Equipment is center location, width is adjusted automatically by computer.
3.Equipment can make step feeding automatically from 1 to 7 grade in horizontal and vertical direction.
4.All servo motor are imported servo motor in foil feeding , punching and shearing , guide , etc.
Equipment Composition:
1. Double head uncoiling machine
2. Buffering device
3. Feeding measure device
4. O- type punching
5. V- type punching
6. +45°Shearing machine
7. -45°Shearing machine
8. Material dividing and transporting device
9. Automatic material feeding device
Technical Parameters:
| Code | SH-300 | SH-400 | SH-600 | SH-900 |
| Shearing width | 40-300mm | 40-440mm | 60-640mm | 90-920mm |
| Shearing length | 300-2000mm | 300-2500mm | 400-3500mm | 500-5000mm |
| Shearing thickness | 0.20-0.35mm | |||
| Shearing length precision | ±0.1mm | |||
| Slitting burr | ≤0.02mm | |||
| Shearing angle precision | ±0.025° | |||
| Slitting width error | ±0.025° | |||
| Slitting burr | ≤0.02mm | |||
| Max feeding speed | 250m/min | 200m/min | ||
| Sorting out method | Automatic sorting out | |||
| Hold punching diameter | According to requirement | |||
| Locating method | Center locating | |||
| Installing capacity | 25kw | 30kw | 35kw | 70kw |
Amorphous Alloy Core Cutting Line
Application :
It is used for automatic cutting and stacking of amorphous alloy transformer core.
Features :
1.Adopting AC servo system for length setting and feeding, high precision.
2.Automatic sizing of uncoiling machine, convenient and efficient for material loading.
3.Adopting PLC touch screen, convenient to input plate shape parameters.
Equipment Composition:
1. Uncoiling machine
2. Coil material buffering device
3. Material feeding device
4. Cutting device
5. Automatic stacking device
6. Electric control
Technical Parameters:
| Code | SH-200 |
| Shearing width | 140-230mm |
| Feeding speed | 60m/min |
| Shearing length | 300-3000mm |
| Shearing length precision | 士0.5mm |
| Shearing angle | 90° |
| Shearing angle precision | 士0.025 |
| Shearing thickness | Each layer 0.023mm, Max 15 layers |
| Stacking thickness | 180mm |
| Stacking position error | 士0.5mm |
| Length of the loading platform | 2000mm |
| Coil outer diameter | φ1100mm |
| Coil inner diameter | φ400mm |

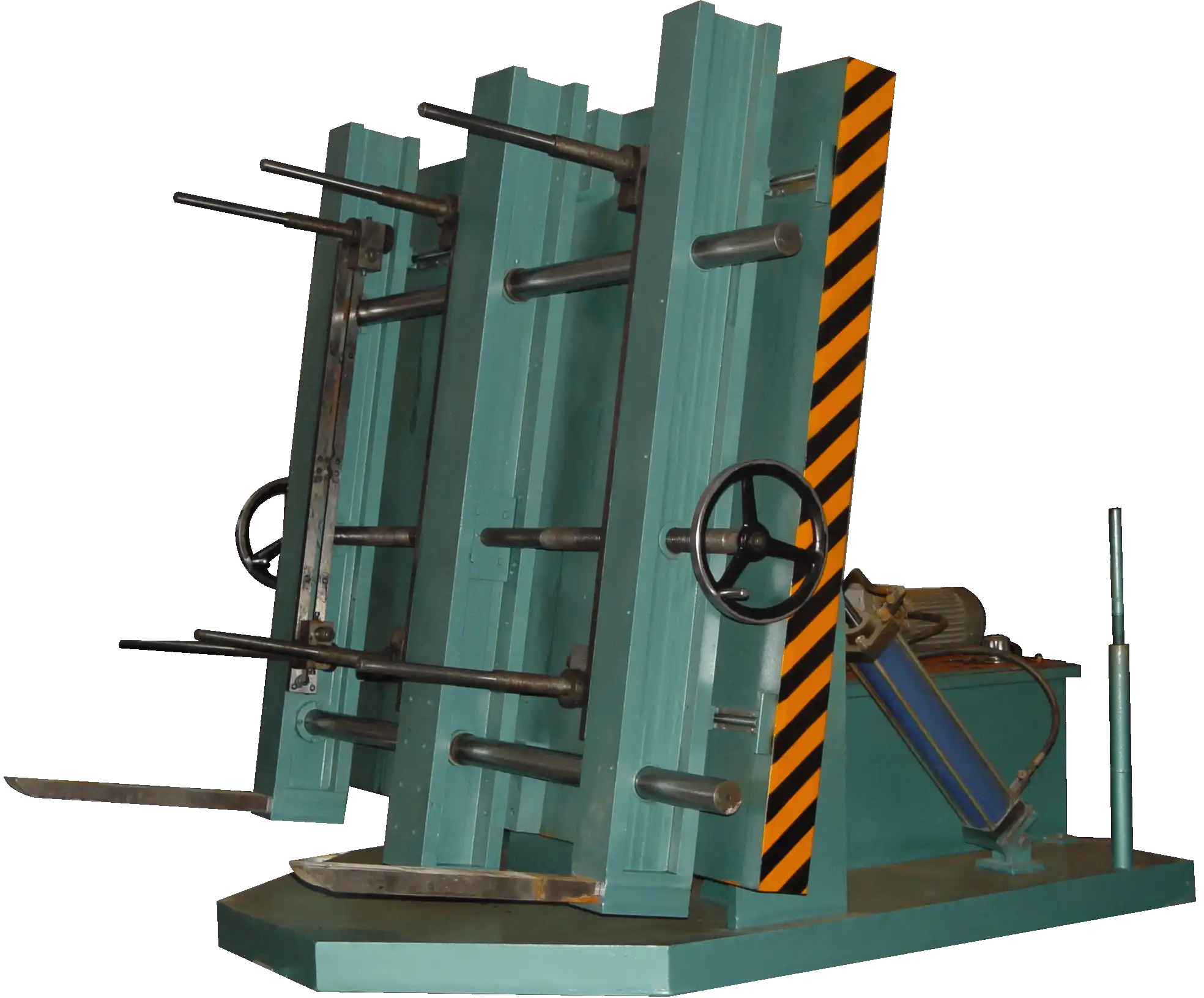

Amorphous Transformer Body Assembly Worktable
Application :
This equipment is dedicated for amorphous alloy transformer body assembly. It is available for all types of oil and dry amorphous transformer assembly.
Features :
1.It changes traditional transformer body assembly art. Wire group is placed on the lifting table of assembly in advance. Axis of wire group is horizontal. Each single steel core inserts wire group inner hole horizontally.
2.Iron core close, wrapping and sealing, transformer body insulation assembly, clamping device fastening and other works are all finished in assembly worktable.
3.This assembly worktable height can be adjusted conveniently and meet with different types transformer assembly
4.After assembly, transformer body can make 90°turning. It is lifted convenient, no deformation and safely.
Equipment Composition:
1. Hydraulic lifting platform
2. Assembly platform
3. 90°turning device
4. Hydraulic station
5. Hydraulic car
6. Electric control cabinet
Technical Parameters:
| Code | SH-3T | SH-5T |
| Loading | 3T | 5T |
| Working height | 850mm | |
| Working stroke | 500mm | 600mm |
| Transformer body size using | length:700-1600mm Width:200-900mm Height:200-900mm | |
| Lifting speed(adjustable) | V=40mm/s | |
| Working pressure | P=14MPa | |
Iron Core Overturning Worktable
Application :
It is used for transformer iron core stacking and overturning.
Features :
1.Hydraulic overturning, stable and reliable during working
2.It has high precision mechanical structure and operates safety
Equipment Composition:
1. Machine body
2. Hydraulic system
3. Electric control system
Technical Parameters:
| Code | SH-3T | SH-5T | SH-10T |
| Loading | 3T | 5T | 10T |
| Working heigh | 850mm | 1000mm | 1200mm |
| Lron core size | Length: 1500mmWidth: 1500mm | Length: 2000mmWidth: 2000mm | Length: 2500mmWidth: 2500mm |
| Overturning angle | 0-90° | 0-90° | 0-90° |

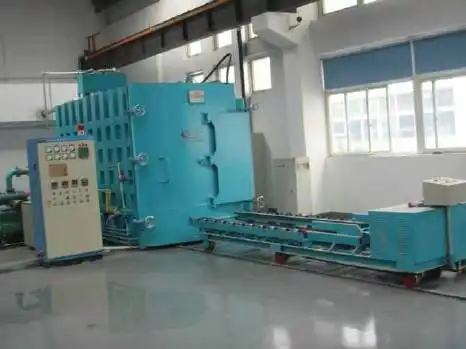

Vacuum Annealing Furnace
Application :
Mainly used for silicon steel sheet vacuum annealing treatment, widely used in: triangular wound core, open volume recovery magnetic annealing characteristics of core, transformer core disc, plain radiographs and regeneration.
Features :
1. Thermal annealing, compared with external thermal annealing, annealing with high efficiency, energy saving etc.
2. Horizontal annealing, installed furnace capacity, car and out of the furnace.
3. Man-machine dialogue automatic control annealing furnace, a number of annealing curve, a key operation, the entire automatic annealing, unattended.
4. Internal heating type high temperature radiation heating, high thermal efficiency; nitrogen cooling, cooling fast, short cycle annealing.
Technical Parameters:
| Furnace type | Horizontal signal room |
| Effective size of inner liner | 1000x1100x2200mm (W)x(H)x(L) |
| Effective size of inner liner | 1200x1200x2600mm Note: Max loading capacity 10000KG, Power 180KW, Vacuum machine:2X+70Pump +150Roots Pump, other technical parameters are same |
| Max loading capacity | 5000kg |
| Maximum furnace temperature | 950℃ （900℃ (800℃-850℃ is enough for your material)） |
| Limit vacuity | 100Pa |
| Pressure rising rate | ＜50Pa/h |
| Air exhausting time | 30min(Vacuum 400Mpa) |
| Heating power | 120kW （3×40kW） |
| Temperature uniformity | ≤±2℃(Insulation) |
| Temperature of furnace surface | +35℃ |
| Temperature Points | 3 |
| Temperature control method | Automatic by program |
| Operation mode | Manual (Furnace door) |
| Cooling water capacity | (tons per hour)10～12(t) |
SH-1300-400 Corrugated Fin Forming Machine
Features :
1. Special machine for transformer fuel tank.
2. Include de-coiler, main machine, hydraulic station and electric control box etc.
3. It has reasonable structure and operation easily.
4. The hydraulic system is automatic controlled and running stable.
5. It may complete such as forming, shearing, bending etc process within one time when you put all operation parameters at screen.
Technical Parameters:
| Name | Spec |
| Steel Thickness | 1.0~1.5（mm） |
| Fin Length | 300~2000（mm） |
| Fin Width | 300~1300（mm） |
| Fin Height | 40~400±0.2（mm） |
| Fin Pitch | 42~80±0.2（mm） |
| Fin Pitch Tolerance | ± 0.2（mm） |
| Working speed | 3pcs/1min |
| Machine weight | 11000kg |

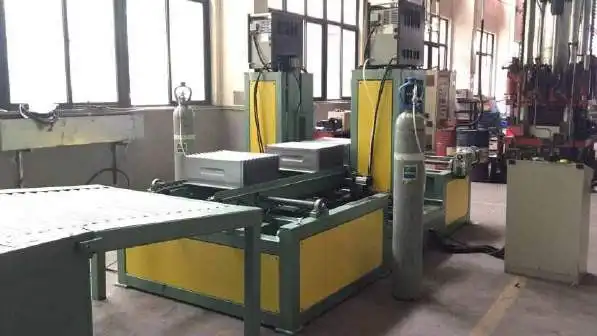

Corrugated Tank/Fin Welding Machine
Application :
Corrugated fin automatic welding machine is kind of professional welding machine used in transformer manufacturing industry. Use air cylinder to clamp the fins, then welding gun move from top to bottom through ball screw driven by DC speed motor and weld the fins properly. Adopted air cylinder feeding, the machine can work continuously. The whole electric circuit is controlled by PLC system and the machine could run in fully automation mode.
Features :
1. PLC control, full automatic, automatic conveying, automatic clamping, automatic welding.
2. High welding speed, much quicker than manual welding.
3. Argon arc welding, very tight welding result, very clean and smooth finished welding surface.
4. Touch screen control, operate easily.
Technical Parameters:
| Name | Spec |
| Fin Width | 100—1300mm±1mm |
| Fin Length | 300—2000mm |
| Fin Thickness | 1.0—1.5mm |
| Fin Height | 50—400±1.0mm |
| Fin Pitch | 45—80mm±0.20mm |
| Welding speed | 2-3 fins/min |
| Machine weight | 17000kg |

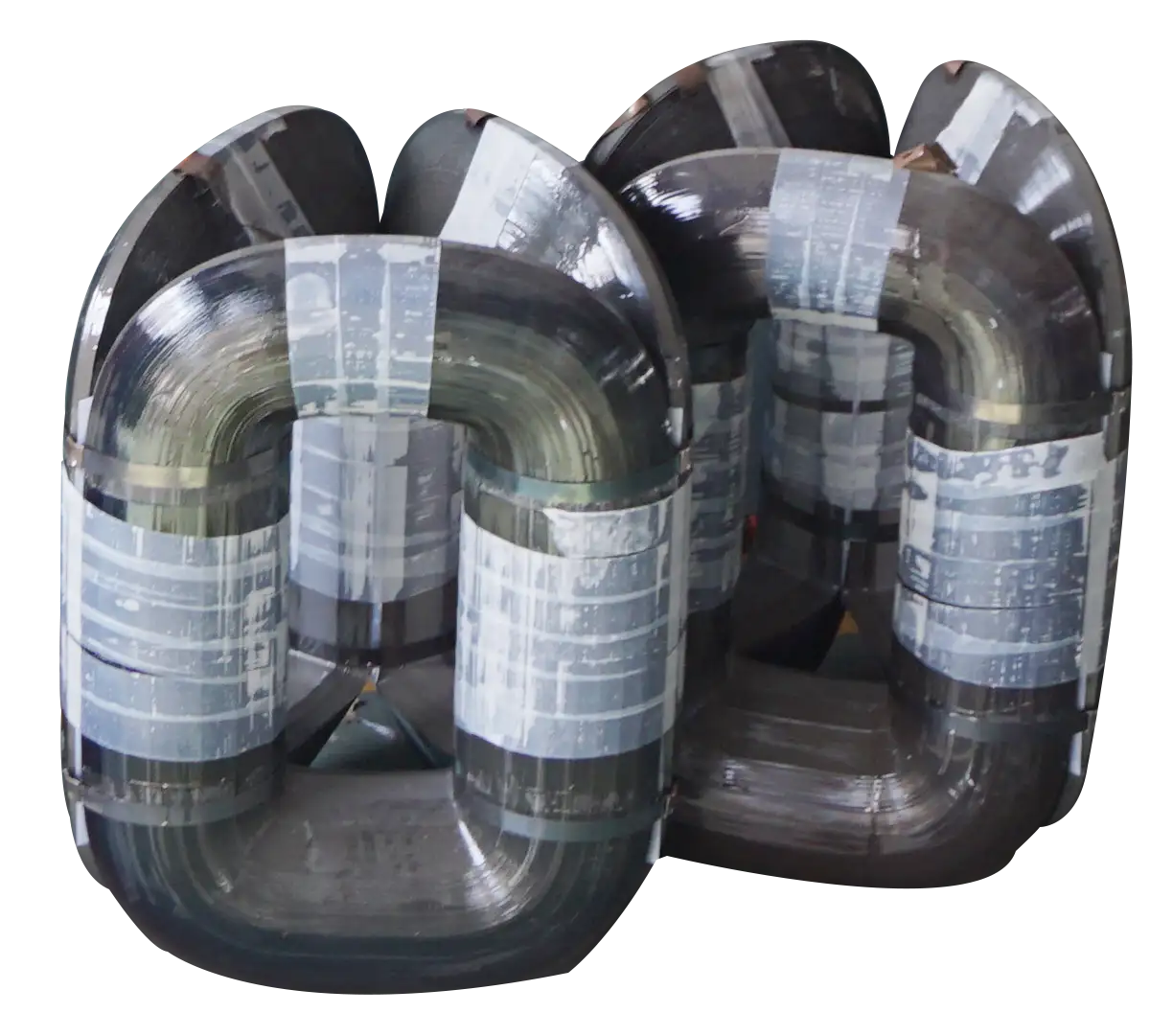

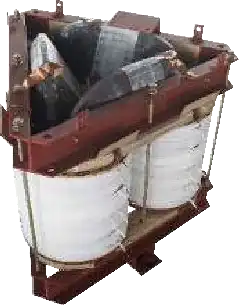

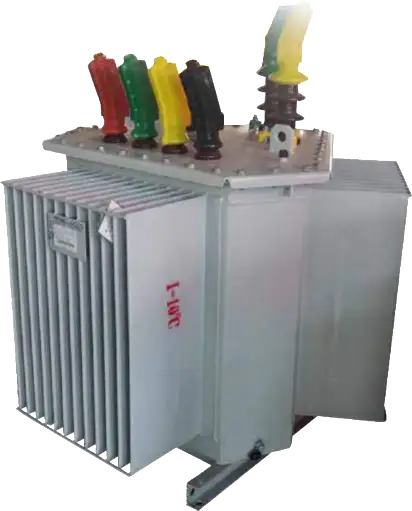

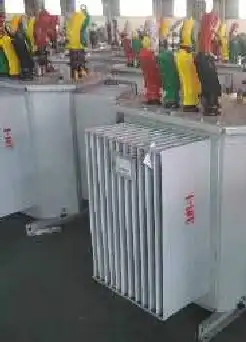

3D Wound Core Transformer
Features :
Core combined by three single wound core frames with the same size to form a 3D triangle
Advantages :
1.Balanced magnetic circuits and exciting current in all 3 phases
2.Lower no-load losses
3.Reduced vibrations
4.Reduced in-rush currents
5.Better short circuit withstanding capability
6.Reduced exciting (a.k.a. reactive or no-load) currents
7.Low voice, energy saving, low cost and anti-theft

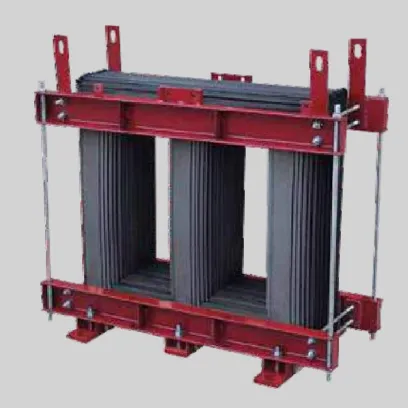

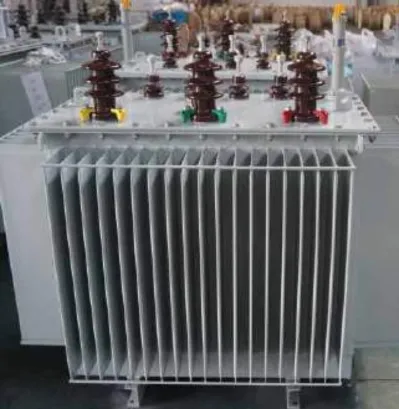

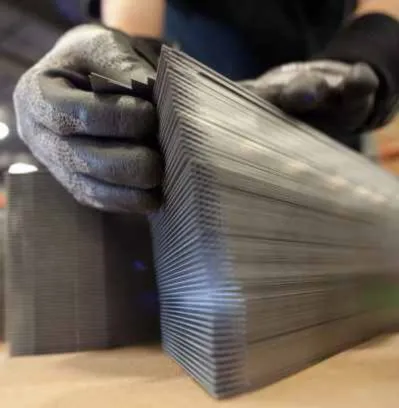

Stacked Core Transformer
Advantages :
1.Easy assembly. Range no standard range of design exists due to the diversity of design requirements.
2.The materials magnetic properties are recover by annealing in nitrogen furnace. We produce single phase cores ranging from 10KVAto 5000KVA, and the three-phase cores ranging from 10KVAto 40MVA.
R-type Iron Core Transformer
Application :
Widely used in single-phase or three-phase S11, S13 distribution transformers.
Advantages :
It is an environmental and energy – saving products. With different widths and multi-layer symmetrical winding, the cross section is approximately circular in the symmetrical step.The coil is directly wind on the core which can reduce the length of the coil. The magnetic circuit is completely closed and no leakage flux. Efficiency of R-Core Transformer is usually more
Production Process

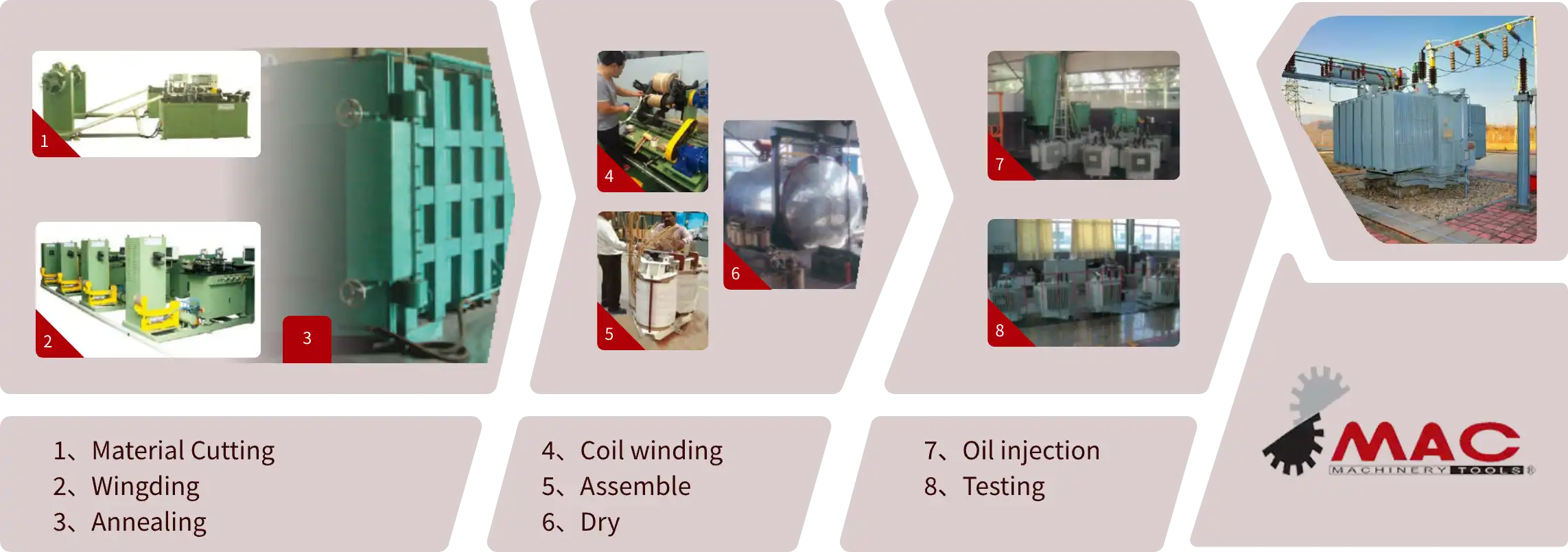

3D Wound Core Transformer Production Process
